ACOUSTIKIT
WEDGE PANEL
The

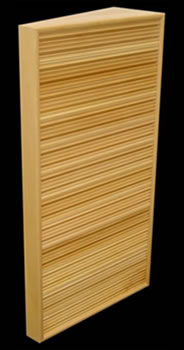

ACOUSTIKIT WEDGE PANEL offers a solution for those undesirable reflections which corrupt the stereo imaging at the listening sweet spot. Since these reflections are generated from a critical listening room’s boundary, the most effective way to minimize this unwanted effect is to absorb the interfering reflections over a broad range of frequencies as well as to deflect them away from the listening area. We developed the ACOUSTIKIT WEDGE PANEL in order to extend the low frequency absorption efficiency of conventional flat absorptive panels and quadratic diffusers. The ACOUSTIKIT WEDGE PANEL is installed as a splayed module. It incorporates a variable depth air cavity which improves low frequency response and increases the angle of incidence and deflects high frequencies.
The
ACOUSTIKIT WEDGE PANEL is made of wood. Standard finishes are: light wood, cherry wood or colored lacquer. Please contact
ACOUSTIKIT® for special color matching. The
ACOUSTIKIT WEDGE PANEL is manufactured under custom specs for every room. Standard dimensions are: 2'-0" (0.61m) wide by 4'-0" (1.22m) high. Please contact
ACOUSTIKIT® to submit your room information. The
ACOUSTIKIT WEDGE PANEL installation can be implemented to any wall via customized "J" Type clips. (Two pairs of clips per unit are supplied.) A real panel size template with pre-drilled holes is also provided in order to accommodate mounting hardware locations. Please refer to schematic for mounting details |
