ACOUSTIKIT
RESONATOR
PANEL
The

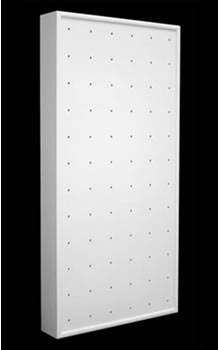

ACOUSTIKIT RESONATOR PANEL is a Helmholtz Type Resonator which achieves outstanding absorption performance at low frequencies. Commonly, reverberation within low frequency range tends to be much longer than the rest of the spectrum. Consequently, the quality of the sound perceived is poor, unbalanced, “boomy”, and airless. The
ACOUSTIKIT RESONATOR PANEL is a powerful element to control the excess of reverberation, as well as modal interference in any acoustical environment. Correctly tuned, it is one of the most effective low frequency absorbers available. The sound not absorbed is re-radiated from the resonator openings to the room in a hemispherical pattern resulting in energy being diffused, something very desirable in low frequencies. The
ACOUSTIKIT RESONATOR PANEL is made of MDF. Standard finishes are: unfinished wood, light wood, or colored lacquer. Please contact
ACOUSTIKIT for special color matching. The
ACOUSTIKIT RESONATOR PANEL is manufactured under custom specs for every room. Standard dimensions are: 2'-0" (0.61m) wide by 2'-0" (0.61m) high. Please contact
ACOUSTIKIT to submit your room information.
The
ACOUSTIKIT RESONATOR PANEL
installation can be implemented to any wall via
customized "J" Type clips. Two pairs of clips per
unit are supplied. A real panel size template with
pre-drilled holes is also provided in order to
accommodate mounting hardware locations. (Please
refer to schematic for mounting details)
An optional ceiling mount is available if units are meant to be installed in a standard 2'-0" (0.61m) by 2'-0" (0.61m) hanging ceiling structure. |
